ATM, Kiosk and Gas Pump Rolls: A Thermal Paper Buying Guide

Unattended printers fail differently than countertop printers. When a receipt printer behind a checkout counter jams, someone clears it in thirty seconds. When an ATM in a bank vestibule loads a roll backwards, it prints blank slips for two days until a customer complains, and every one of those transactions generates a support call.

That gap is why buying rolls for ATMs, self service kiosks and fuel dispensers is a different exercise than buying POS paper. The width is the easy part. The specifications that actually decide whether a roll works are the coating orientation, the presence of sense marks, and whether the grade holds up inside a metal enclosure that sits in the sun.

This guide covers what to check before you order, with the sizes that fit the equipment most commonly in the field.

Start with the printer, not the roll

The single most common ordering mistake is buying by application name instead of by printer model. "ATM paper" is not a specification. A Hyosung, an NCR 56xx and a Triton all get called ATMs and all three take different rolls.

Before you order, pull four things off the printer or the existing roll core:

1. Width, measured on the paper itself, not the spindle
2. Length or diameter, whichever the equipment manual specifies
3. Coating orientation, coated side in or coated side out
4. Sense marks, present or absent

If you have a spent core, the old roll's part number is usually printed on the inside of the core or on the case label. That number is worth more than any spec sheet.

For general grade and compatibility background that applies across all receipt printers, see how to choose the right thermal paper roll.

Coated side in or coated side out is the spec that fails silently

Thermal paper prints on one side only. The thermal coating faces the printhead, and if the roll is wound with the coating on the wrong side, the printer runs normally, feeds normally, cuts normally, and delivers a blank slip.

Catalogs abbreviate this as CSI (coated side in) and CSO (coated side out). Two rolls with identical width and length can be entirely different products on this one attribute.

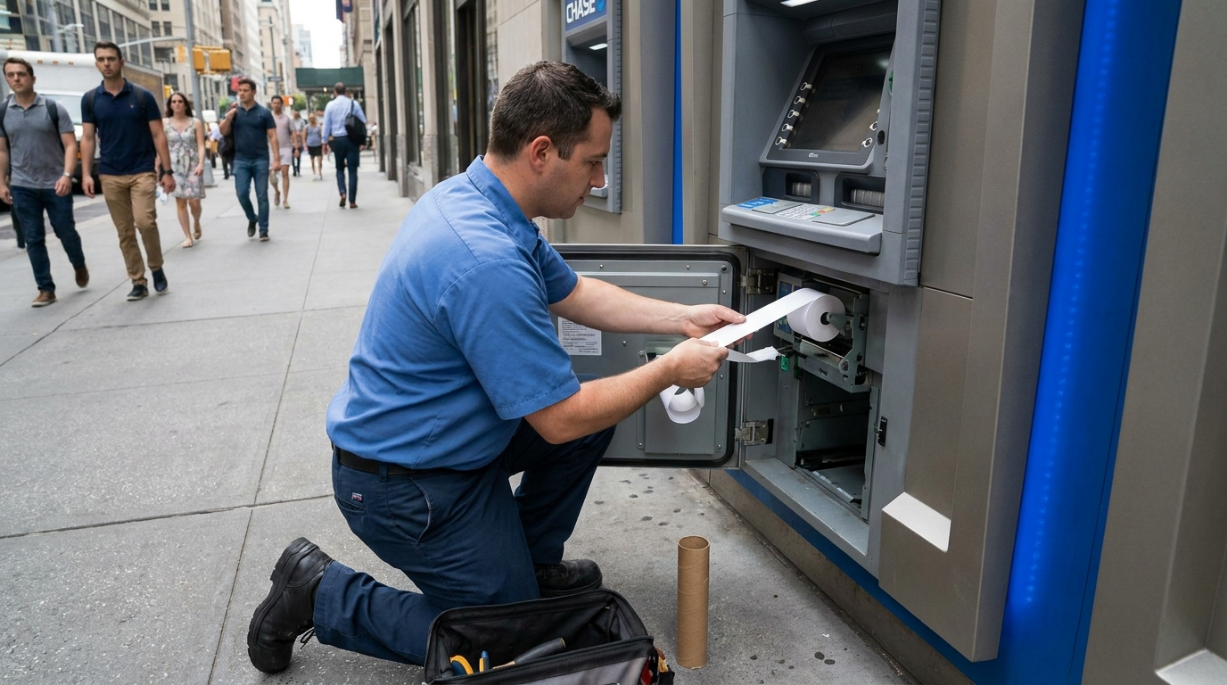

The distinction matters more in unattended equipment for a simple mechanical reason. Countertop printers are usually clamshell designs where the roll drops in one obvious way. ATMs and kiosks often feed from an enclosed cassette or a bottom-fed spindle where a reversed roll is not visually obvious to whoever is servicing it.

A quick field test: scratch the paper with a fingernail or a coin. The thermal side darkens. The other side does not.

Look at how this plays out in a real catalog. The same 3 1/8" x 440' heavy ATM roll is stocked as both a CSI version and a CSO version. Same dimensions, different machines.

Sense marks separate ATM rolls from receipt rolls

A sense mark is a printed black rectangle on the back of the web, spaced at a fixed interval. An optical sensor in the ATM reads those marks to track position, cut in the right place, and detect a low or empty roll before it strands a customer mid transaction.

Feed a roll without sense marks into a printer that expects them and the machine will typically throw a paper jam or paper out fault even though the path is clear and the roll is full.

Sense marks are near universal in bank ATMs and common in ticketing and bill payment kiosks. They are rare in retail POS. This is the reason a 3 1/8" receipt roll from the stockroom will not substitute for a 3 1/8" ATM roll, even though the width matches. If your machine needs them, order a roll that names them explicitly, such as 3 1/8" x 1960' with sense marks.

Size reference by equipment type

Widths in this category cluster tightly, which is exactly why they get mixed up. Two rolls 1/16 of an inch apart will both physically load, and only one will track correctly.

ATM and bank kiosk

Diebold Nixdorf and NCR publish their own OEM lengths, commonly 3.15" x 900' for DN and Opteva series and 3.125" x 1960' for the NCR 56xx, 5670, 58xx and 6638 families. Cross reference against the manufacturer documentation for your fleet before standardizing.

Gas pump and fuel dispenser

Note the three near identical widths: 2 1/4", 2 9/32" and 2 5/16". They are within 1/16" of each other. Ordering by "gas pump paper" alone is how a site ends up with four cases it cannot use. Browse the full range under gas pump rolls.

Tank monitoring

Veeder-Root tank gauges take a wider, much shorter roll, commonly 3 1/4" x 85' CSI. It is easy to overlook when ordering for a fuel site because it is not a customer facing printer, and it is usually the one that runs out during a compliance inspection.

Grade, weight and durability in unattended enclosures

Buyers often ask for a vandal resistant roll. It is worth being precise here: vandal resistance is a property of the hardware, the bezel, the throat design and the enclosure, not of the paper. No thermal roll is vandal resistant.

What the paper can be is durable, and in unattended equipment three properties matter:

• Basis weight. Heavier stock, commonly labeled 21# or "heavy," resists tearing at the cut and jamming in long feed paths. Most of the longer ATM rolls in this category are heavy grade for that reason.
• Topcoat. A topcoated thermal sheet resists oil, water and abrasion. On a fuel island, where receipts are handled with fuel on the hands, this is not a luxury.
• Image life. Standard thermal images fade with heat, UV and time. A roll sitting in a south facing outdoor enclosure in Phoenix has a very different thermal history than one in a climate controlled branch lobby. If receipts function as records, ask for the image life rating rather than assuming.

Storage matters as much as grade. Keep unopened cases away from direct sunlight, solvents and heat sources, and out of contact with PVC or plasticizers, which will darken thermal stock in the box.

BPA free and phenol free

Most current thermal stock is BPA free, and every roll in this category is. BPA free is not the same claim as phenol free, though. BPA free means bisphenol A specifically has been removed. Phenol free means the whole phenol based developer class is out, including BPS.

For institutions with a written chemical policy, and for banks in particular, that difference gets asked about during procurement review. If your organization has a policy, source from the phenol free paper range rather than relying on a BPA free label alone.

Buying in volume

Unattended equipment consumes paper predictably, which makes it well suited to standing orders. A few practices that keep fleets running:

• Standardize where you can. If half your ATMs take 3 1/8" CSO and half take CSI, note it on the machine itself, inside the service door, rather than relying on the technician's memory.
• Order by case, not by roll. Case quantities in this category run 4, 8, 12, 16, 18, 24 and 50 depending on roll diameter.
• Keep one spare case per site. The cost of a case is trivially small against a dispenser out of service on a weekend.
• Check reseller pricing if you service equipment for others. See the reseller program and current bulk discounts, and review supplier terms before setting up a recurring purchase order.

Full range for all three applications: ATM, kiosk and gas pump rolls. Additional background on grades and printer compatibility is in the resource center.

FAQ

Can I use a regular 3 1/8" POS receipt roll in an ATM?

Usually not. Most bank ATMs need sense marks, and many need a specific coating orientation. A standard POS roll of the same width will commonly trigger a paper jam or paper out fault even when the path is clear.

How do I tell CSI from CSO on a roll I already have?

Scratch the outer surface of the paper with a coin or fingernail. If it leaves a dark mark, the coating faces out and the roll is CSO. If the outside stays clean and the inside darkens, it is CSI.

What size paper do Gilbarco and Wayne pumps take?

Gilbarco CRIND units commonly use 2 5/16" x 209'. Wayne dispensers commonly use 2 5/16" x 400'. Both widths are also stocked in 2 1/4" and 2 9/32" variants for other dispenser printers, so confirm against the printer rather than the pump brand alone.

Is there such a thing as vandal resistant receipt paper?

No. Vandal resistance is a hardware characteristic of the printer bezel and enclosure. For paper, the equivalent durability specs are heavier basis weight, a topcoated surface, and a rated image life.

Are these rolls BPA free?

Yes. If your procurement policy requires the removal of the full phenol developer class rather than BPA alone, order from the phenol free range instead.

Before you order

Get the printer model, the coating orientation and the sense mark requirement written down once, per machine, and the reordering stops being guesswork. Those three facts plus the width will identify the correct roll every time.

Browse ATM, kiosk and gas pump rolls to match your equipment, or contact us with your printer model and we will confirm the right roll before you place the order.
